Hengstler Safety Relays​

German company Hengstler GmbH of Aldingen, began making force guided safety relays in the 1970s. Over the past fifty years they have gradually built a product line featuring thousands of relays, differentiated by their coil voltage, contact configuration and contact material.

FGR International has been a Hengstler distributor for 37 years and is now the exclusive Channel Partner and stocking distributor of Hengstler-Kaco relays for the North American Market. In expanding our website, we thought that specifications on the more commonly used Hengstler safety relays would be useful to our customers. We have selected these relays on PDF files below.

For relays not listed here, please contact us at info@fgri.com or toll-free 877-736-0304.


Hengstler Overview Spec Sheets

H-462

  • 4 or 6 contacts max. 10 A
  • Switching and constant current Drive available as DC monostable, DC bistable, AC monostable and as load-current controlled
  • Ambient temperatures -25 to +80 °C
  • Forcibly guided contacts to DIN EN 61810-3,
  • Application type A
  • Meets requirements for signal relays under UIC 736e cULus and TÜV approvals


    • Spec Sheet

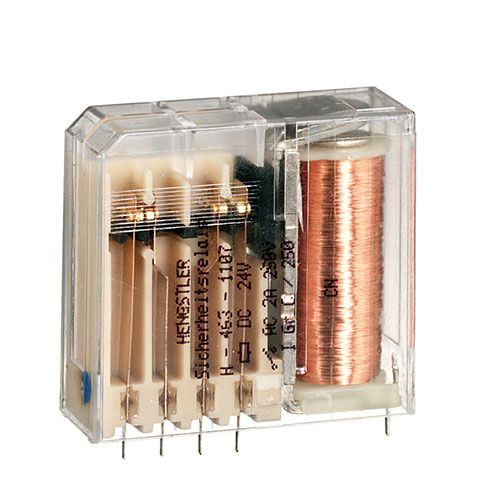

    H-463

    • 4 contacts
    • max. 6 A switching & permanent current
    • Drive is monostable as DC
    • Ambient temperature -25 to +80 °C
    • With forcibly guided contacts to DIN EN 61810-3, application type A
    • CSA and TÜV approval


      • Spec Sheet

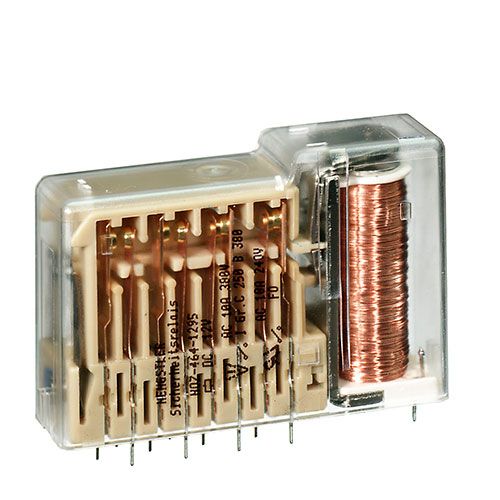

      H-464​

      • 4, 6, 8 or 10 contacts
      • max. 10 A switching and constant current
      • Drive available as DC monostable, DC bistable and as load-current controlled
      • Ambient temperatures -25 to +80 °C
      • Forcibly guided contacts to DIN EN 61810-3, Application type A
      • Meets requirements for signal relays under UIC 736e
      • cULus and TÜV approvals


        • Spec Sheet

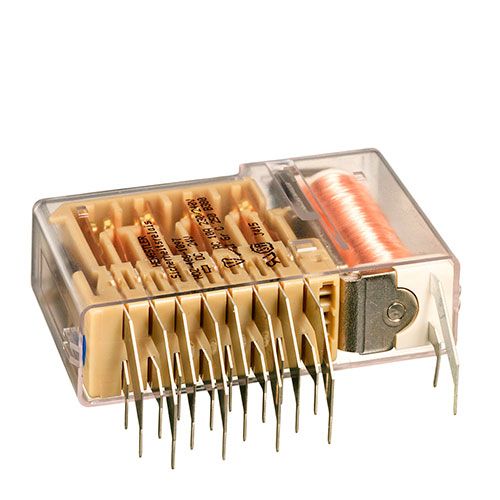

        H-466

        • 8 or 10 contacts
        • max. 10 A switching and constant current
        • Drive available as DC monostable, DC bistable and as load-current controlled
        • Ambient temperatures -25 to +80 °C
        • Forcibly guided contacts to DIN EN 61810-3, Application type A
        • Meets requirements for signal relays under UIC 736e
        • cULus and TÜV approvals


          • Spec Sheet

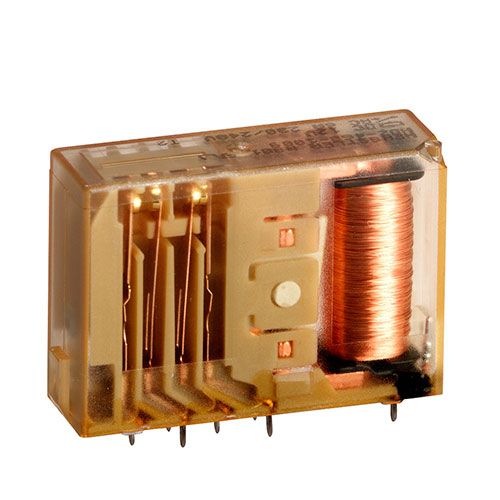

          H-468

          • 4 or 6 contacts
          • Max. 6 A switching & permanent current
          • Drive is monostable as DC
          • Ambient temperature -25 to +80 °C
          • With forcibly guided contacts to DIN EN 61810-3, application type A
          • cULus and TÜV approval


            • Spec Sheet

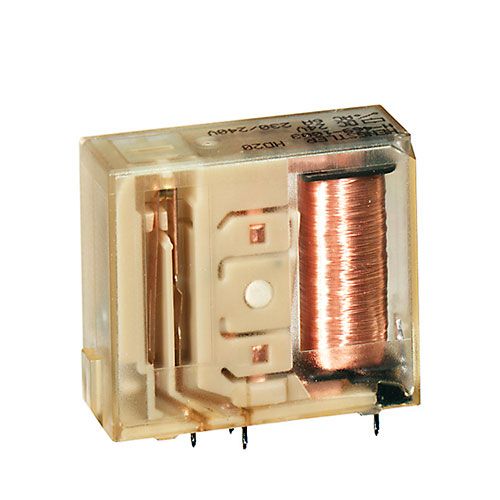

            H-469

            • 2 contacts
            • max. 6 A switching & permanent current
            • Drive is monostable as DC
            • Ambient temperature -25 to +80 °C
            • With forcibly guided contacts to DIN EN 61810-3, application type A
            • cULus and TÜV approval


              • Spec Sheet

              H-472

              • 7 contacts
              • max. 6 A switching & permanent current
              • Drive is monostable as DC
              • Ambient temperature -25 to +80 °C
              • With forcibly guided contacts to DIN EN 61810-3, application type A
              • Meets requirements for signal relays under UIC 736e
              • cULus and TÜV approval


                • Spec Sheet

                H-473

                • 5 contacts
                • max. 6 A switching & permanent current
                • Drive is monostable as DC
                • Ambient temperature -25 to +75 °C
                • With forcibly guided contacts to DIN EN 61810-3, application type A
                • Meets requirements for signal relays under UIC 736e
                • cULus and TÜV approval


                  • Spec Sheet

                  H-480

                  • 6 contacts
                  • max. 8 A switching & permanent current
                  • Drive is monostable as DC
                  • Ambient temperature -25 to +75 °C
                  • With forcibly guided contacts to DIN EN 61810-3, application type A
                  • cULus and TÜV approval


                    • Spec Sheet

                    Note: Technical Data and Drawings are based on our research and experience. The Data Sheet information contained here for our safety relays with Force Guided contact sets, safety relay boards, safety modules, and general purpose control relays is specified but does not have any binding characteristics. It is the responsibility of the end user to decide the suitability of the relays and/or boards in the intended application based on their own releasing tests. Rights to technical changes reserved.
